Procell Alkaline Constant Power 9V
Size 9V
Chemistry Alkaline
Cell type | Procell Alkaline Constant Power 9V |
Cell name | PC1604 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous Improvement Program |
Nominal Capacity (mAh) | 692 mAh (2 mA Cont., 5V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 1,692 mΩ @ 1kHz |
Typical weight | 48.7 g (1.6 oz) |
Typical volume | 22.8 cm₃ (1.4 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Miniature snap |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 5 years |
Battery AIS/MSDS | Download AIS/MSDS |
Constant current

Constant power

Constant resistance


Procell Alkaline Constant Power AA, 1.5V
Size AA
Chemistry Alkaline
Cell type | Procell Alkaline Constant Power AA, 1.5V |
Cell name | PC1500 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous Improvement Program |
Nominal Capacity (mAh) | 3,125 mAh (25 mA Cont., .8V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 98 mΩ @ 1kHz |
Typical weight | 24.7 g (0.9 oz) |
Typical volume | 8.4 cm₃ (0.5 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Flat |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |

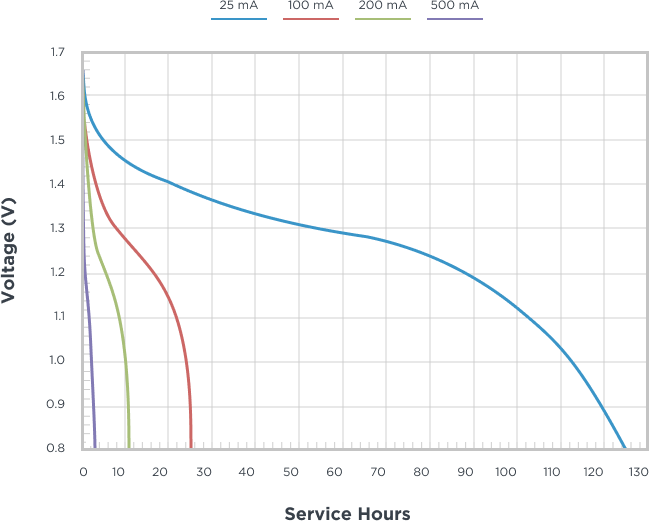

Constant current

Constant resistance


Procell Alkaline Constant Power AAA, 1.5V
Size AAA
Chemistry Alkaline
Cell type | Procell Alkaline Constant Power AAA, 1.5V |
Cell name | PC2400 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous Improvement Program |
Nominal Capacity (mAh) | 1,222 mAh (25mA Cont., .8V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 155 mΩ @ 1kHz |
Typical weight | 11.4 g (0.4 oz) |
Typical volume | 3.5 cm₃ (0.2 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Flat |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |

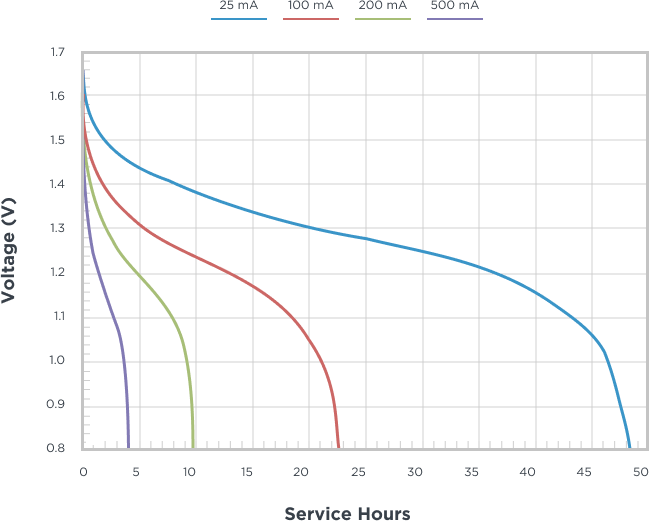

Constant current

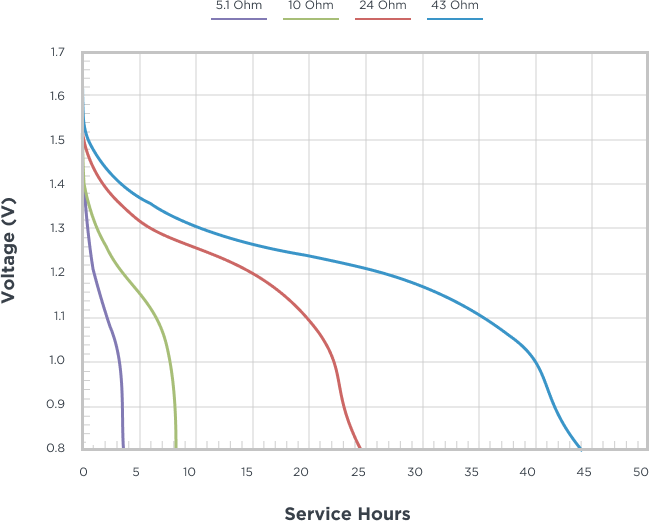

Constant resistance


Procell Alkaline Constant Power C, 1.5V
Size C
Chemistry Alkaline
Cell type | Procell Alkaline Constant Power C, 1.5V |
Cell name | PC1400 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous ImprovementProgram |
Nominal Capacity (mAh) | 9,038 mAh (25 mA Cont., .8V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 150 mΩ @ 1kHz |
Typical weight | 70.7 g (2.5 oz) |
Typical volume | 26.9 cm₃ (1.6 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Flat |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |

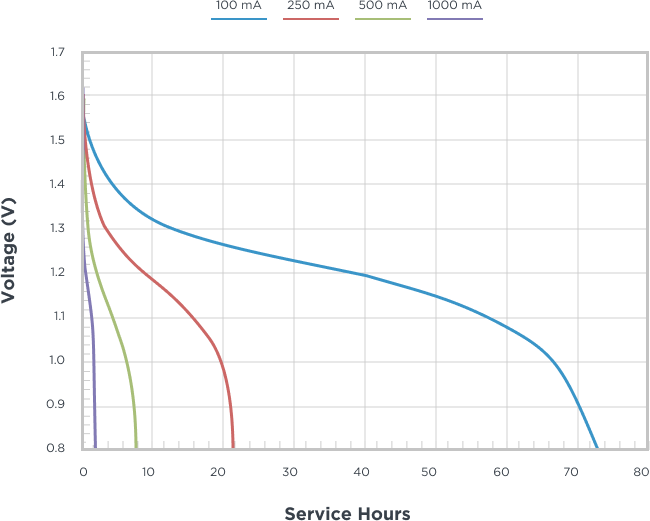

Constant current

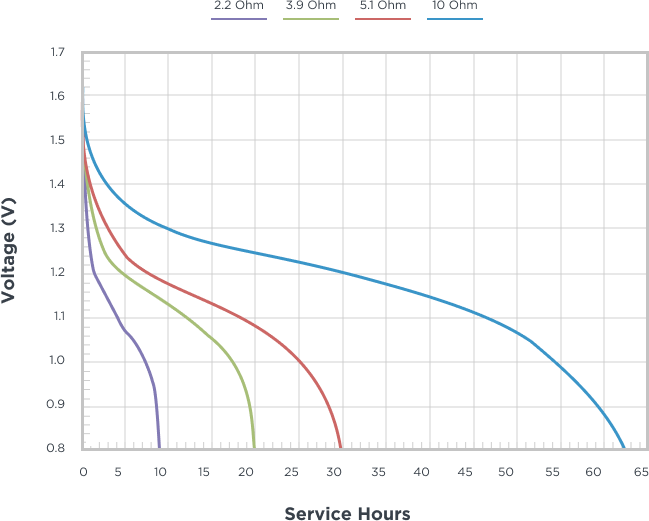

Constant resistance


Procell Alkaline Constant Power D, 1.5V
Size D
Chemistry Alkaline
Cell type | Procell Alkaline Constant Power D, 1.5V |
Cell name | PC1300 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous Improvement Program |
Nominal Capacity (mAh) | 19,669 mAh (25 mA Cont., .8V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 133 mΩ @ 1kHz |
Typical weight | 144.0 g (5.1 oz) |
Typical volume | 56.4 cm₃ (3.4 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Flat |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |
Constant resistance


Procell Alkaline Intense Power 9V
Size 9V
Chemistry Alkaline
Cell type | Procell Alkaline Intense Power 9V |
Cell name | PX1604 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous Improvement Program |
Nominal Capacity (mAh) | 726 mAh (2 mA Cont., 5V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 1,692 mΩ @ 1kHz |
Typical weight | 48.5 g (1.6 oz) |
Typical volume | 22.8 cm₃ (1.4 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Miniature snap |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 5 years |
Battery AIS/MSDS | Download AIS/MSDS |
Constant current

Constant resistance

Constant power


Procell Alkaline Intense Power, AA 1.5V
Size AA
Chemistry Alkaline
Cell type | Procell Alkaline Intense Power AA, 1.5V |
Cell name | PX1500 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous Improvement Program |
Nominal Capacity (mAh) | 3,072 mAh (25 mA Cont., .8V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 77 mΩ @ 1kHz |
Typical weight | 24.3 g (0.9 oz) |
Typical volume | 8.4 cm₃ (0.5 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Flat |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |
Constant current

Constant resistance

Constant power


Procell Alkaline Intense Power AAA, 1.5V
Size AAA
Chemistry Alkaline
Cell type | Procell Alkaline Intense Power AAA, 1.5V |
Cell name | PX2400 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous Improvement Program |
Nominal Capacity (mAh) | 1,223 mAh (25 mA Cont., .8V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 116 mΩ @ 1kHz |
Typical weight | 11.3 g (0.4 oz) |
Typical volume | 3.5 cm₃ (0.2 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Flat |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |
Constant current

Constant resistance


Procell Alkaline Intense Power C, 1.5V
Size C
Chemistry Alkaline
Cell type | Procell Alkaline Intense Power C, 1.5V |
Cell name | PX1400 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous Improvement Program |
Nominal Capacity (mAh) | 8,240 mAh (25 mA Cont., .8V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 74 mΩ @ 1kHz |
Typical weight | 65.0 g (2.5 oz) |
Typical volume | 26.9 cm₃ (1.6 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Flat |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |
Constant current

Constant resistance


Procell Alkaline Intense Power D, 1.5V
Size D
Chemistry Alkaline
Cell type | Procell Alkaline Intense Power D, 1.5V |
Cell name | PX1300 |
Safety and environmental standards | IEC 60086-5 | ANSI C 18.1M, Part-2 | EU Battery Directive | Quality: ISO 14001 and 9001, Duracell World Class Continuous Improvement Program |
Nominal Capacity (mAh) | 18,600 mAh (25 mA Cont., .8V cut-off) |
Standard continuous discharge current | - |
Maximum continuous discharge current | - |
Maximum abnormal charge current | - |
Maximum pulse discharge current | - |
Nominal Energy | - |
AC Impedance (mΩ) | 56 mΩ @ 1kHz |
Typical weight | 140.0 g (5 oz) |
Typical volume | 56.4 cm₃ (3.4 in₃ ) |
Li metal content | - |
Battery case | - |
Terminals | Flat |
Operating temperature | -20°C to 54°C (-4°F to 130°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |
Constant current

Constant resistance


Procell High Power Lithium Intense CR123, 3V
Size CR123 Intense
Chemistry High Power Lithium
Cell type | Procell High Power Lithium Intense CR123, 3V |
Cell name | PX123 |
Safety and environmental standards | Safety: IEC 60086-4 | Transport: UN 38.3 | RoHS and REACH compliance | Quality: ISO 9001, Duracell World Class Program |
Nominal Capacity (mAh) | 1600 mAh (100 Ohm Cont, 2 V cut-off) |
Standard continuous discharge current | 20 mA |
Maximum continuous discharge current | 60 mA |
Maximum abnormal charge current | 25 mA |
Maximum pulse discharge current | - |
Nominal Energy | 4.35 Wh |
AC Impedance (mΩ) | 350 mOhm @ 1kHz |
Typical weight | 17.0g (0.60 oz.) |
Typical volume | - |
Li metal content | approx. 0.53 g |
Battery case | - |
Terminals | - |
Operating temperature | -20°C to 75°C (-4°F to 167°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |

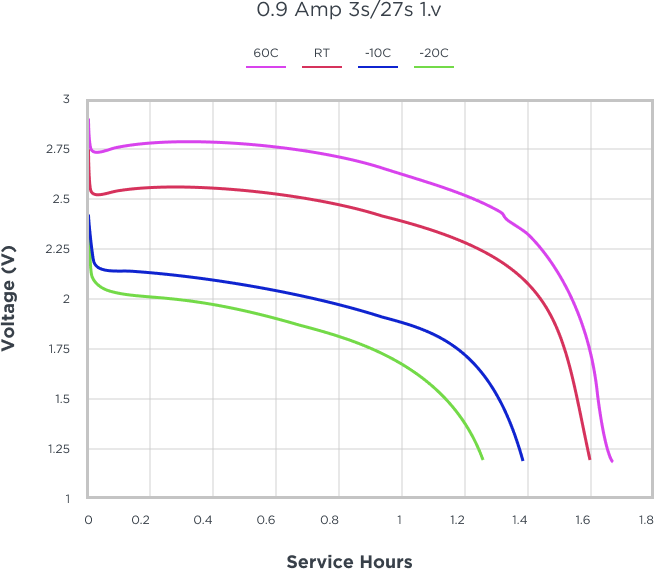

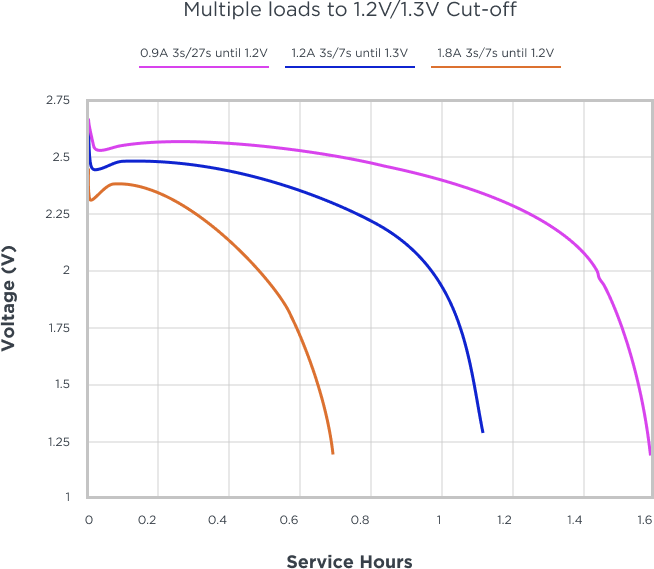

Pulse Discharge @ Multiple Loads

Temperature Performance

Low Load Pulse Test


Procell High Power Lithium Intense CR2, 3V
Size CR2 Intense
Chemistry High Power Lithium
Cell type | Procell High Power Lithium Intense CR2, 3V |
Cell name | PXCR2 |
Safety and environmental standards | Safety: IEC 60086-4 | Transport: UN 38.3 | RoHS and REACH compliance | Quality: ISO 9001, Duracell World Class Continuous Program |
Nominal Capacity (mAh) | 920 mAh (100 Ohm Cont, 2 V cut-off) |
Standard continuous discharge current | 20 mA |
Maximum continuous discharge current | 60 mA |
Maximum abnormal charge current | 20 mA |
Maximum pulse discharge current | - |
Nominal Energy | 2.55 Wh |
AC Impedance (mΩ) | 500 mOhm @ 1kHz |
Typical weight | 11.0g (0.39 oz.) |
Typical volume | - |
Li metal content | approx. 0.30 g |
Battery case | - |
Terminals | - |
Operating temperature | -20°C to 75°C (-4°F to 167°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |

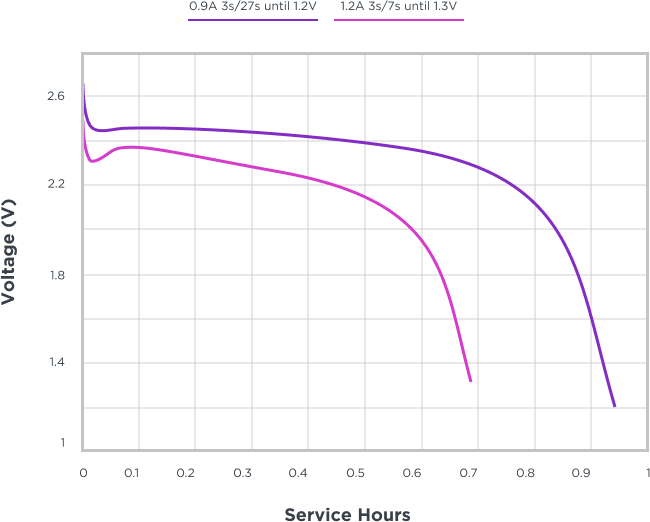

Pulse Discharge

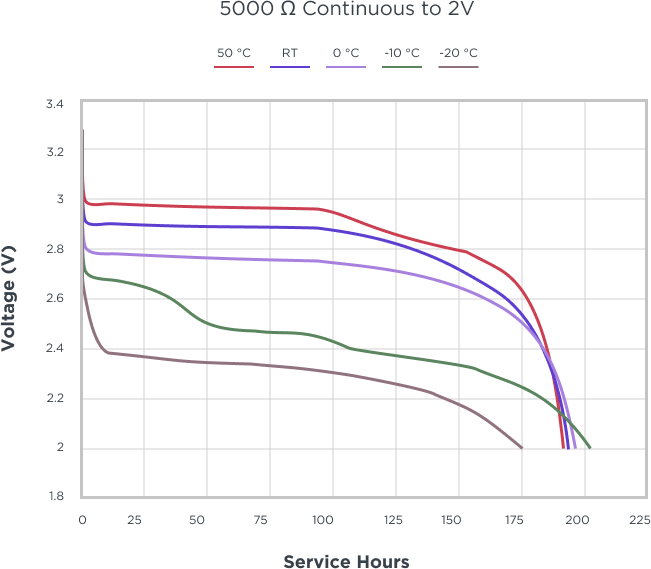

Temperature Discharge

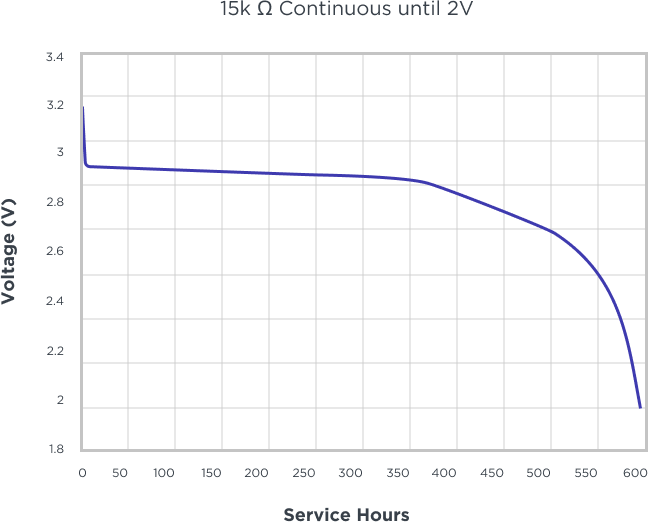

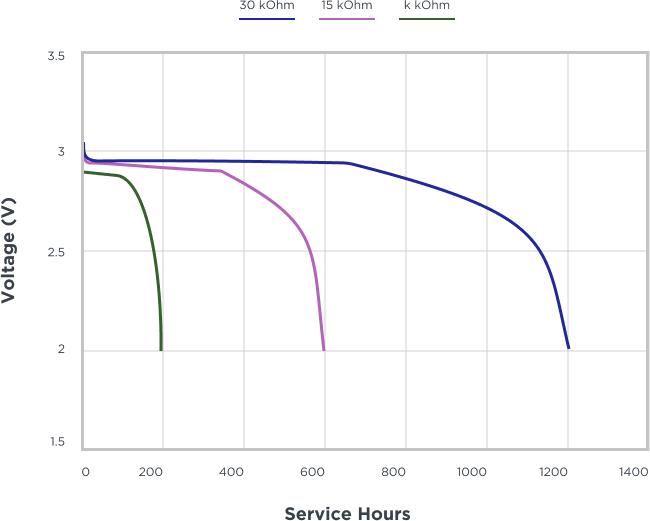

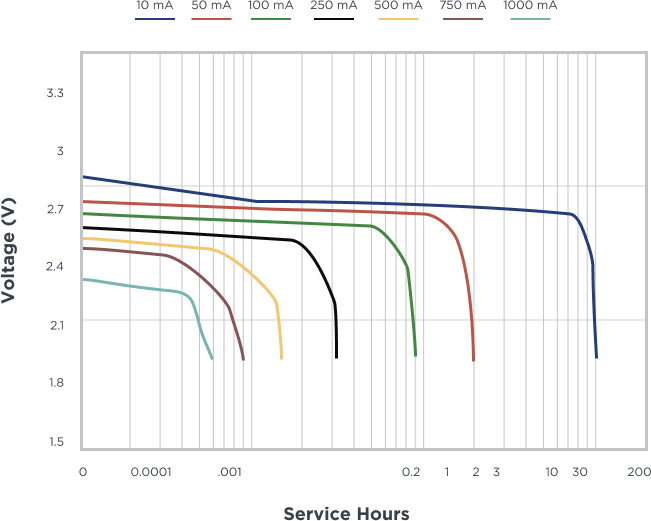

Continuous Discharge


Procell Lithium Coin 2016, 3V
Size 2016
Chemistry Lithium Coin
Cell type | Procell Lithium Coin 2016, 3V |
Cell name | PC2016 |
Safety and environmental standards | IEC 60086-4 | RoHS and REACH compliance | Quality: ISO 9001, Duracell World Class Continuous Program |
Nominal Capacity (mAh) | 110 mAh (15 kΩ Cont., 2.0 V cut-off) |
Standard continuous discharge current | 0.2 mA |
Maximum continuous discharge current | 3 mA |
Maximum abnormal charge current | - |
Maximum pulse discharge current | 10 mA |
Nominal Energy | 315 mWh |
AC Impedance (mΩ) | 11Ω @ 1kHz |
Typical weight | 1.74g (.061 oz.) |
Typical volume | - |
Li metal content | approx. 0.025 g |
Battery case | - |
Terminals | - |
Operating temperature | -20°C to 60°C (-4°F to 140°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |
Continuous Discharge to 2.oV cut-off

Temperature Discharge

Continuous Discharge


Procell Lithium Coin 2025, 3V
Size 2025
Chemistry Lithium Coin
Cell type | Procell Lithium Coin 2025, 3V |
Cell name | PC2025 |
Safety and environmental standards | IEC 60086-4 | RoHS and REACH compliance | Quality: ISO 9001, Duracell World Class Continuous Program |
Nominal Capacity (mAh) | 185 mΩ (15kΩ Cont., 2.0 V cutoff) |
Standard continuous discharge current | 0.3 mA |
Maximum continuous discharge current | 3 mA |
Maximum abnormal charge current | - |
Maximum pulse discharge current | 10 mA |
Nominal Energy | 525 mWh |
AC Impedance (mΩ) | 16Ω @ 1kHz |
Typical weight | 2.39 g (.084 oz.) |
Typical volume | - |
Li metal content | approx. 0.048 g |
Battery case | - |
Terminals | - |
Operating temperature | -20°C to 60°C (-4°F to 140°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |

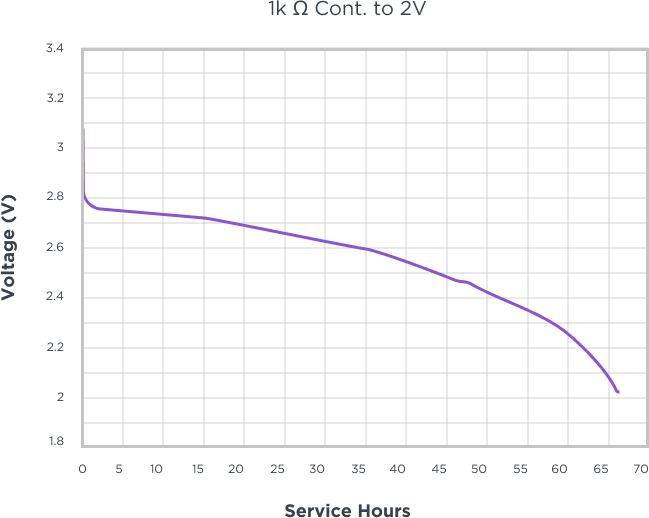

Continuous Discharge Characteristics

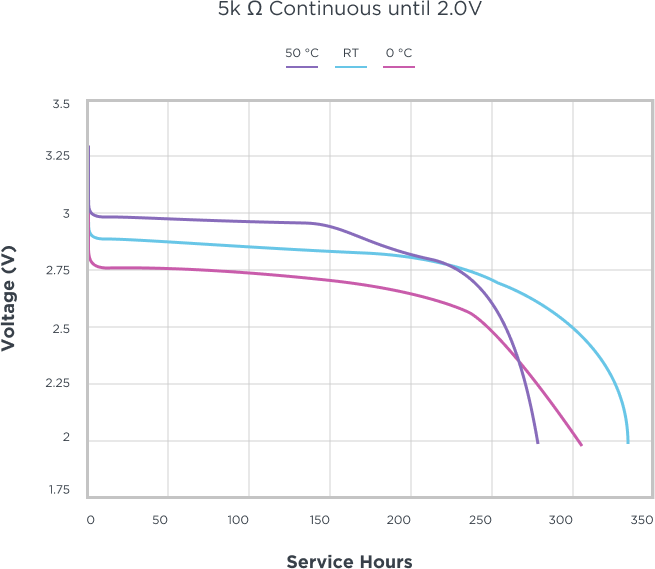

Temperature Discharge

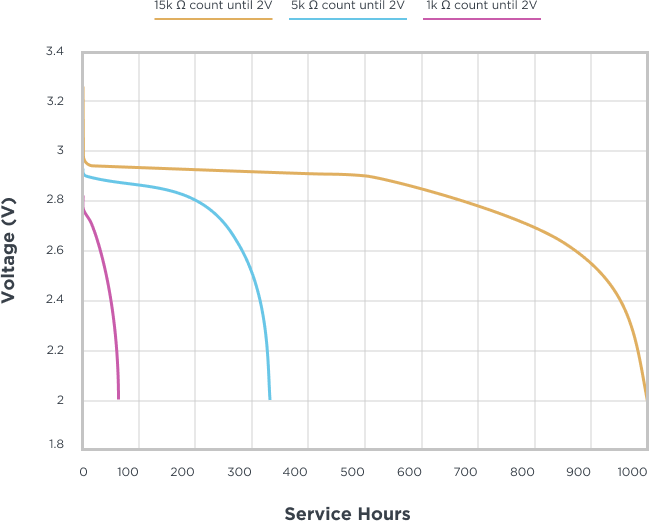

Continuous Discharge Characteristics


Procell Lithium Coin 2032, 3V
Size 2032
Chemistry Lithium Coin
Cell type | Procell Lithium Coin 2032, 3V |
Cell name | PC2032 |
Safety and environmental standards | IEC 60086-4 | RoHS and REACH compliance | Quality: ISO 9001, Duracell World Class Continuous Program |
Nominal Capacity (mAh) | 265 mAh (15 kΩ Cont., 2.0 V cut-off) |
Standard continuous discharge current | 0.3 mA |
Maximum continuous discharge current | 3 mA |
Maximum abnormal charge current | - |
Maximum pulse discharge current | 50 mA |
Nominal Energy | 745 mWh |
AC Impedance (mΩ) | 11Ω @ 1kHz |
Typical weight | 2.92 g (0.10 oz.) |
Typical volume | - |
Li metal content | approx. 0.07 g |
Battery case | - |
Terminals | - |
Operating temperature | -20°C to 60°C (-4°F to 140°F) |
Storage temperature | 5°C to 30°C (41°F to 86° F) |
Shelf life | 10 years |
Battery AIS/MSDS | Download AIS/MSDS |

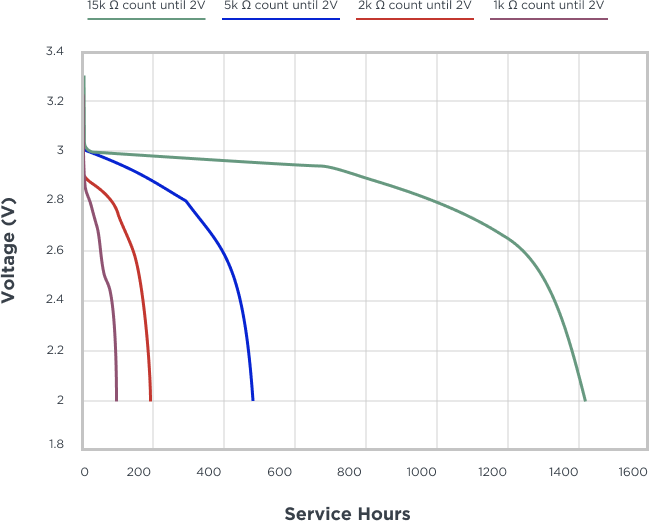

Continuous Discharge Characteristics

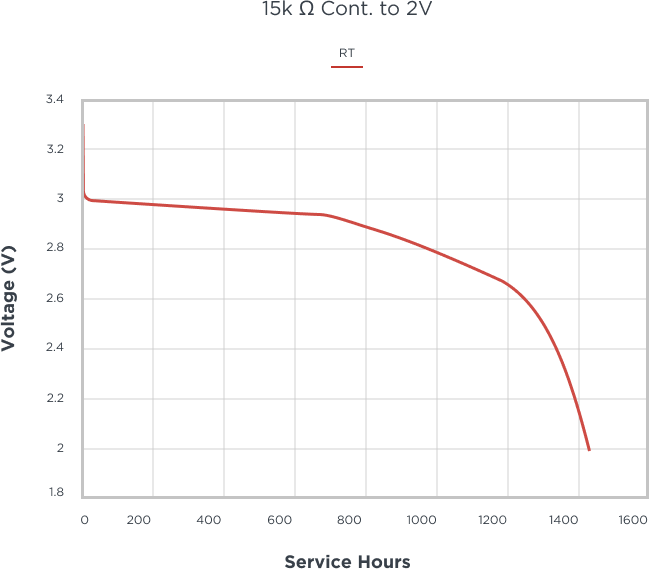

Temperature Discharge Characteristics

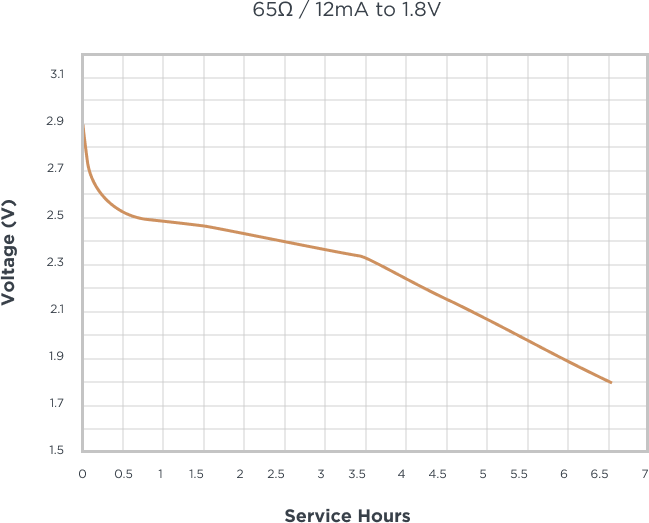

High Resistance Test

Your selected batteries to compare
Procell's technical specialists are ready to discuss your professional requirements.
Contact Us
|
|
Tech data |
|
Cell type |
|
Cell name |
|
Safety and environmental standards |
|
Nominal Capacity (mAh) |
|
Standard continuous discharge current |
|
Maximum continuous discharge current |
|
Maximum abnormal charge current |
|
Maximum pulse discharge current |
|
Nominal Energy |
|
AC Impedance (mΩ) |
|
Typical weight |
|
Typical volume |
|
Li metal content |
|
Battery-case |
|
Terminals |
|
Operating temperature |
|
Storage temperature |
|
Shelf life |
|
Battery AIS/MSDS |
|
|
Speak to one of our technical sales team
For more in depth technical & commercial discussions, please reach out to us today.


Technical Consulting Services
PROCELL offers a complete range technical consulting services to aid in the development and design to optimize your battery powered applications.
Our consultants and engineers can advise on the best power sources and cavity design options to ensure your device’s optimal performance.
Procell’s Extensive Capabilities Support Partners During All Phases Of Development including sustained support as our end to end customer service.
